Sensuron Optical Fiber Sensors Overview
Sensuron’s Optical Fiber Sensors enable engineers to collect and analyze material and structural data based on minute changes in tens of thousands of points of light.
Measured in real-time, Sensuron’s Fiber Optic Sensing technology ensures precise measurement and optimal performance.
Our range of Fiber Optic Sensors fit a variety of applications across industries.
Along with obtaining spatially continuous measurements along the entire length of an optical fiber, each platform has multi-sensing capabilities: they can simultaneously measure strain, temperature, deflection, 2D shape, and more.
In addition to Optical Fiber Sensors, Sensuron offers a range of accessories to complement your fiber optics sensing needs.

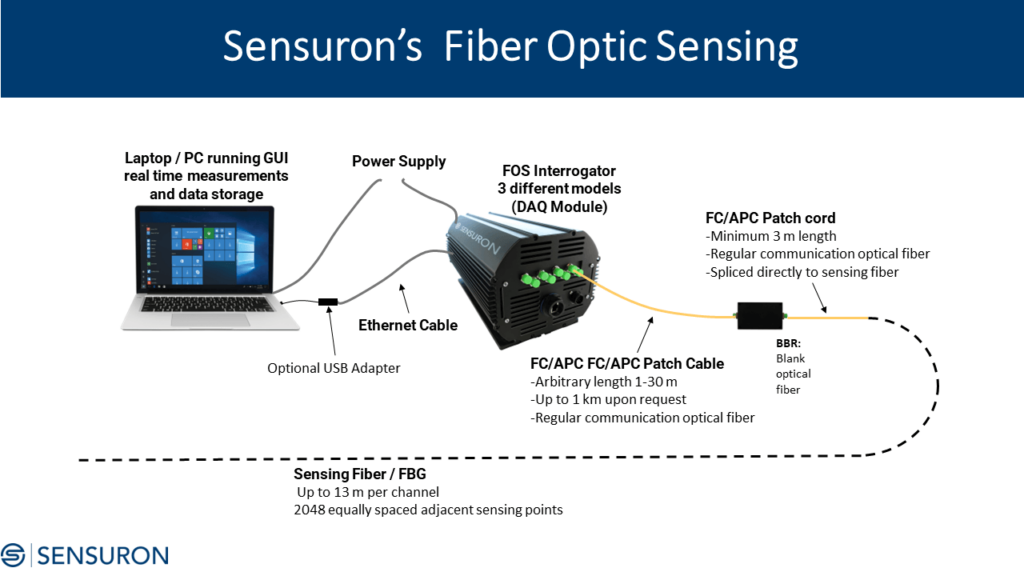

Sensuron's Optical Fiber Sensors: Layout
Distributed Strain and Temperature Measurement Solutions
Maximum Precision Optical Fiber Sensors
RTS250+ DFOS System
- Our newest and fastest interrogator yet! Choose between 8 simultaneously monitored fibers with over 2,000 equally spaced sensors per fiber in 100 hz mode, or 4 fibers in 200 hz mode
- Software selectable spatial resolution down to 1.6 mm (with custom order option; highest stock resolution is 6.3mm)
Learn more about Sensuron’s RTS250+ DFOS System.
RTS125+ DFOS System
- 8 simultaneously monitored fiber optic sensing channels, providing 16,000+ strain/temperature sensors
- A ruggedized multi-sensing platform, the RTS125+ is ideal for harsh environments where real-time, spatially continuous monitoring is needed
Learn more about Sensuron’s RTS125+ DFOS System.
Summit DFOS System
- 4 simultaneously monitored fiber optic sensing channels, providing 8,000+ strain/temperature sensors
- Software selectable spatial solutions as low as 1.6mm
Learn more about Sensuron’s Summit DFOS System.
Static Strain DFOS System
- Low cost strain platform, monitoring 2000+ strain sensors on a single fiber optic cable.
- Static strain replaces single-point strain sensing solutions such as strain gauges, to monitor multiple areas simultaneously, identifying strain fluctuation points quickly and accurately.
Learn more about Sensruon’s Static Strain DFOS System.

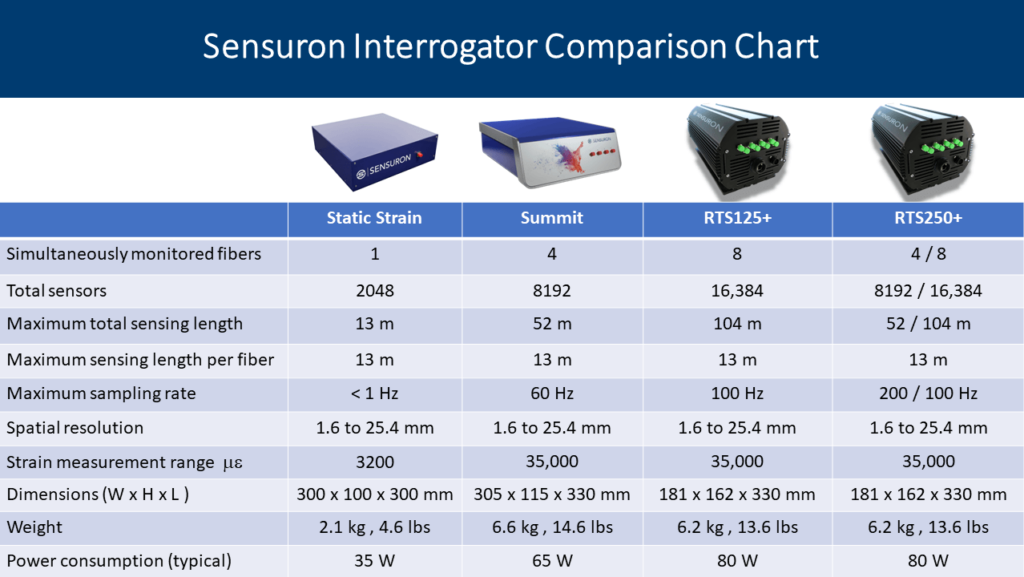

Sensuron Optical Fiber Sensors: Comparison Chart
High Acquisition Rate Fiber Optic Sensors
GTR
FBG Interrogator System
The GTR features new and innovative FBG sensing functionality, based on integrated photonics. The platform is a miniature, out-of-the-box platform supporting optical chipsets for a wide range of applications. The GTR device is a single channel FBG interrogator that features 1pm precision, high speed sampling and easy integration with your applications.
- Small size, low weight, low power consumption.
- 1 optical channel with up to 8 FBG sensors.
- 19 kHz sampling rate.
Learn more about GTR FBG Interrogator System.
SGTR
MULTICHANNEL FBG INTERROGATOR
The SGTR demonstrates great versatility, providing fast channel multiplexing and high sampling speeds per channel. With its unique set of features, its reduced size, weight, and power consumption, the SGTR provides an excellent FBG interrogator solution.
- Small size, low weight, low power consumption.
- Up to 8 optical channels with up to 8 FBG sensors each.
- Scan rate over all channels 30 Hz, maximum sampling frequency (one channel) 19 kHz.
Learn more about SGTR FBG Interrogator.
MIP3
MULTICHANNEL FBG INTERROGATOR FOR ULTRA-HIGH STABILITY MEASUREMENTS
The MIP3 is a high-performance interrogator for Fiber Bragg Grating (FBG) sensors offering ultra-high stability. It provides fast channel multiplexing and high sampling speed per channel, making it ideal for a variety of sensing applications.
- Ultra-high wavelength reproducibility and accuracy enable precise measurements and asset monitoring.
- Up to 7 channels with up to 8 FBG sensors each.
- Scan rate over all channels 100 Hz, maximum sampling frequency (one channel) 19 kHz
Learn more about MIP3 FBG Interrogator.
For more information on Fiber-Optic applications, please Contact us.
OPTICAL FIBER SENSOR ACCESSORIES
Cleaning Kit
Fiber
The cleaning kit contains everything you need to properly clean connectors and prepare fiber for splicing.
This kit contains:
- 200X Fiber microscope
- Ferrule cleaner
- Cleaning cassette
- Lint-free wipes
- Isopropyl alcohol 4oz
Sensuron offers all the fiber you need for your application.
Fibers we offer:
- 195 µm ORMOCER coated (strain sensing)
- 195 µm ORMOCER-T coated (temperature sensing)
- 120 µm ORMOCER coated (strain sensing)
- 120 µm ORMOCER-T coated (temperature sensing)
- 0.5 mm GFRP coated (strain sensing)
- 1.0 mm GFRP coated (strain sensing)
Watch the video below on how to clean fiber connectors to ensure optimal performance.
Splicing Kit
Application Kit
The splicing kit contains the tools needed for fiber splicing:
- Fusion Splicer
- 3-Hole Fiber Stripper
- High Precision Fiber Cleaver
- Fiber Holder 250um and 900um
- V-Groove cleaning brush
- Electrode sharpener
- Fiber preparation fluid
- Fiber wipes
- Fusion protection sleeves
- Fiber patch cables
- Scissors
- Tweezers
- Safety container
- Heatshrink
The application kit contains accessories required for a successful fiber installation:
- Isopropyl alcohol
- Abrasive paper
- M Bond 200 CA glue
- Flash breaker tape
- M Bond AE 10-2-part epoxy
- Lint free wipes
- Scale for epoxy
Watch the video below on how to splice a fiber.
Please contact us for pricing and availability.
